Solar Landscape Light SLL-31
Optical Figure

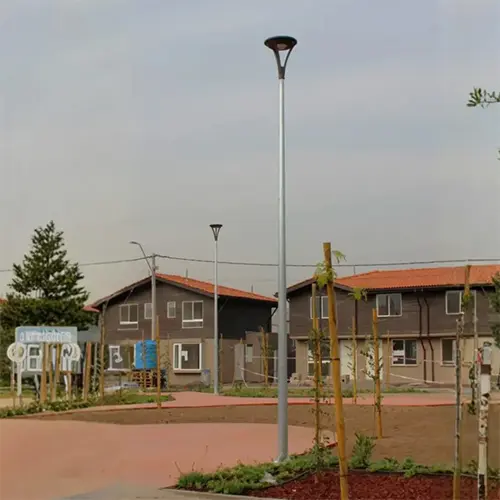

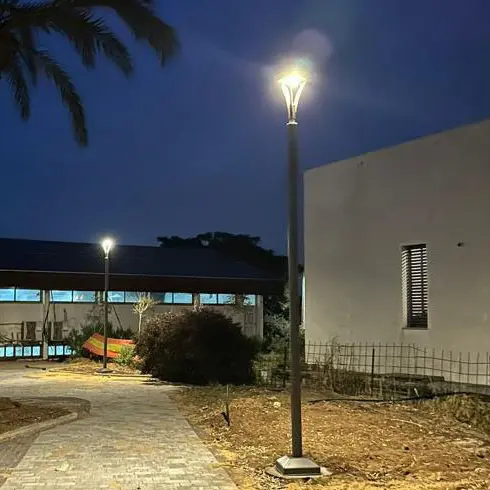

Application Imagery
We hope to provide customers with a landscape light with simple structure and beauty,
which is elegant and also can be integrated into the surrounding scenery.
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
Product Details
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.
Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.
Main material in aluminium; stainless steel bracket.
No upwards dispersion of luminous flux.
High visual comfort.
Battery pack have heat insulation method and temperature detection for charging and discharging temperature protection.
High yield optics (with polymer optic lenses and uniform light distribution).
No photo-biological risks.This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
The luminaire can be programmed in every order.
The luminaire is supplied in three steps Midnight mode and can be lit automatically by a ray sensor.
Overvoltage and Overtemperature protection.
An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity in order to maintain the lighting time of the luminaire even under extreme severe weather.
LED modules , controller, battery pack can be replaced independently.
All external screws used are in SUS304 stainless steel.
Product Information
Installation Method
Other products
Send Your Queries
We'll contact you as soon as we get the message.
Solar Landscape Light SLL-31
Optical Figure
Application Imagery
We hope to provide customers with a landscape light with simple structure and beauty, which is elegant and also can be integrated into the surrounding scenery.
Product Details
New city / New community / Highway / New suburban road lighting system intended for use with LED light sources.
Installation on poles with pole-tops and lateral arms or whip-type poles with terminals measuring ø 60mm or ø 76 to ø 100mm adapter.
Main material in aluminium; stainless steel bracket.
No upwards dispersion of luminous flux.
High visual comfort.
Battery pack have heat insulation method and temperature detection for charging and discharging temperature protection.
High yield optics (with polymer optic lenses and uniform light distribution).
No photo-biological risks.This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
The luminaire can be programmed in every order.
The luminaire is supplied in three steps Midnight mode and can be lit automatically by a ray sensor.
Overvoltage and Overtemperature protection.
An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity in order to maintain the lighting time of the luminaire even under extreme severe weather.
LED modules , controller, battery pack can be replaced independently.
All external screws used are in SUS304 stainless steel.

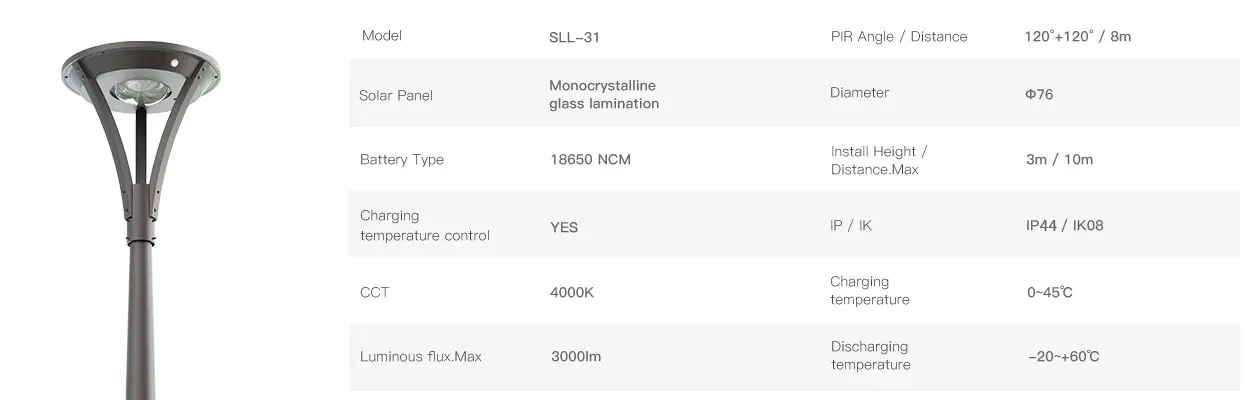

Product Information
| Model | SLL-31 |
|---|---|
| Solar Panel | Monocrystalline glass lamination |
| Battery Type | 18650 NCM |
| Charging temperature control | Yse |
| CCT | 4000K |
| Luminous flux.Max | 3000lm |
| PIR Angle / Distance | 120°+10° / 8m |
| Diameter | Φ70 |
| Install height / Distance.Max | 3m / 10m |
| IP / IK | IP65 / IK08 |
| Charging temperature | 0~45 ℃ |
| Discharging temperature | -20~+60 ℃ |
