Solar street light Alpha SSL-53/SSL-56/SSL-59
Optical Figure
Application Imagery
The design of our Alpha collection is inspired by rainy days.
We hope that they can enjoy the rainy days and the convenience that rainy days bring to people.
Core Technology
LED Screen
Rain sensor
3 installation methods
AC adapters
Product Details
The iteration of new energy products constantly
motivates us to make breakthroughs in product development and technology
An easy-to-read display gives you at-a-glance monitoring, showing real-time status updates for battery life, brightness level, CCT colour temperature, sensor modes, and more. The screen will also automatically turn off after 30 seconds of inactivity to conserve battery power.
Rain sensing technology automatically activates the rain mode when precipitation is detected. This triggers protective lighting output optimized for rain, sleet, and snow.
Conveniently power your light using the included AC adapter, via solar panel charging, or through a standard USB outlet. The universal socket design accepts three common types of plugs.
Switch between warm 3000K and cool 5700K colour temperatures to set just the right mood and light for any occasion.
With the wall, vertical pole and horizontal pole installation options, positioning and directing the light output is easy.
Use the handy remote to adjust brightness, CCT colour, timer settings, and activation of special modes all from the comfort of your chair.
Proprietary TCS technology enables an extended operating temperature range from -10°C to 60°C. Built for reliable illumination in tough environments.
The main material in aluminium; stainless steel bracket.
Battery packs have heat insulation methods and temperature detection for charging and discharging temperature protection.
High-yield optics (with polymer optic lenses and uniform light distribution).
The luminaire is supplied in three steps in Midnight mode and can be lit automatically by a ray sensor.
No photo-biological risks. This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) by EN 62471:2008.
An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity to maintain the lighting time of the luminaire even under extremely severe weather.
All external screws used are in SUS304 stainless steel.
LED modules, controllers, and battery packs can be replaced independently.
Product Information
Installation Method
Other products
Send Your Queries
We'll contact you as soon as we get the message.
Solar street light SSL-32~SSL-310
Optical Figure
Application Imagery
The design inspiration of our Atlas series comes from the industrial revolution. We hope they have both the sense of industry and the convenience that industry brings to people.
Core Technology
The iteration of new energy products constantly motivates us to make breakthroughs in product development and technology
LED Screen
Rain sensor
3 installation methods
AC adapters
Product Details
An easy-to-read display gives you at-a-glance monitoring, showing real-time status updates for battery life, brightness level, CCT colour temperature, sensor modes, and more. The screen will also automatically turn off after 30 seconds of inactivity to conserve battery power.
Rain sensing technology automatically activates the rain mode when precipitation is detected. This triggers protective lighting output optimized for rain, sleet, and snow.
Conveniently power your light using the included AC adapter, via solar panel charging, or through a standard USB outlet. The universal socket design accepts three common types of plugs.
Switch between warm 3000K and cool 5700K colour temperatures to set just the right mood and light for any occasion.
With the wall, vertical pole and horizontal pole installation options, positioning and directing the light output is easy.
Use the handy remote to adjust brightness, CCT colour, timer settings, and activation of special modes all from the comfort of your chair.
Proprietary TCS technology enables an extended operating temperature range from -10°C to 60°C. Built for reliable illumination in tough environments.
Battery packs have heat insulation methods and temperature detection for charging and discharging temperature protection.
High-yield optics (with polymer optic lenses and uniform light distribution).
The luminaire is supplied in three steps in Midnight mode and can be lit automatically by a ray sensor.
No photo-biological risks. This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) by EN 62471:2008.
An active control system(ALS technology, patent for invention No. 201710713248.6) changes the current intensity to maintain the lighting time of the luminaire even under extremely severe weather.

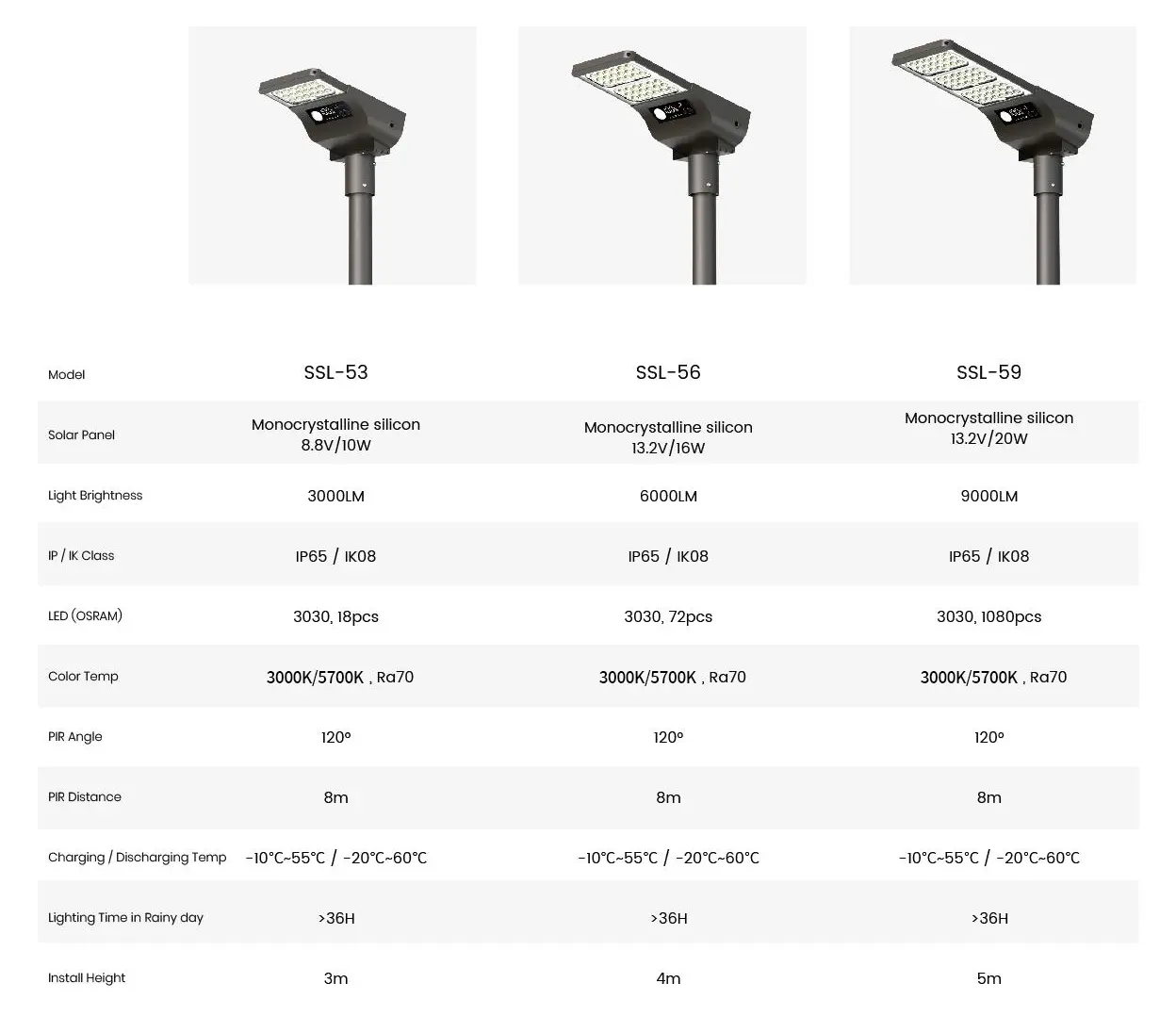

Product Information
Model | SSL-53 | SSL-56 | SSL-59 |
---|---|---|---|
Solar Panel | Monocrystalline glass lamination | Monocrystalline glass lamination | Monocrystalline glass lamination |
Battery Type | 18650 NCM | 18650 NCM | 18650 NCM |
CCT | 3000k / 6000K, Ra70 | 3000k / 6000K, Ra70 | 3000k / 6000K, Ra70 |
Luminous flux.Max | 3000lm | 6000lm | 9000lm |
PIR Angle | 120° | 120° | 120° |
PIR Distance | 8m | 8m | 8m |
Install height / Distance Max | 3m | 4m | 5m |
IP / IK | IP65 / IK08 | IP65 / IK08 | IP65 / IK08 |
Discharging temperature | -10~55 ℃ / -20~+60 ℃ | -10~55 ℃ / -20~+60 ℃ | -10~55 ℃ / -20~+60 ℃ |
Lighting Time in Rainy Day | >36H | >36H | >36H |
